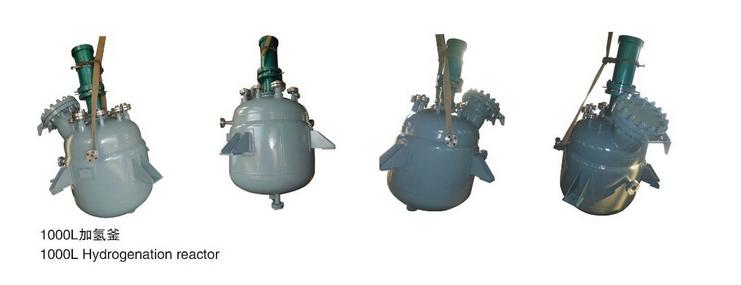

1000L hydrogenation reactor
|
Item
|
Internal kettle
|
Jacket
|
|
Nominal volume
|
1000 L
|
|
|
Design pressure
|
5.5 Mpa
|
0.5 MPa
|
|
Working pressure
|
4 Mpa
|
0.3 MPa
|
|
Design temperature
|
320℃
|
320℃
|
|
Working temperature
|
280℃
|
280℃
|
|
Material
|
316L*Q345R
|
Q345R
|
|
Mixing speed
|
0~300rpm
|
|
|
Media materials
|
Hydrogen
|
Heat transfer area
|
|
Motor power
|
11 KW
|
|
|
Drive type
|
Magnetic coupling
|
|
|
Corrosion allowance
|
Base：1.0 mm
cladding：3.0 mm |
1.5 mm
|
|
Coefficient of welded joints
|
1
|
0.85
|
